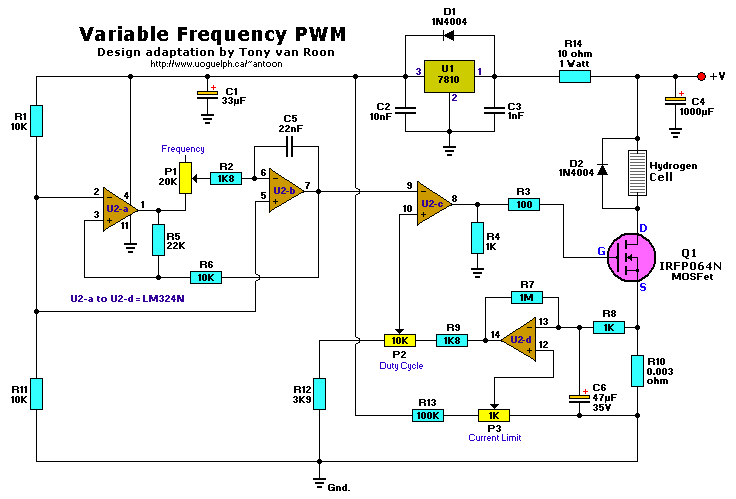

Hydrogen Experiments

(C) 2008 Tony van Roon


PWM


Parts List:
R1,R6,R11 = 10K C1 = 1000uF, 64V R2,R9 = 1K8 C2 = 10nF, polyester R3 = 100 ohm C3 = 100uF, 64V R4,R8 = 1K C4 = 22nF (0.022uF) R5 = 22K C5 = 47uF, 35V R7 = 1M *R10 = 0.003 ohm D1,D2 = 1N4004 R12 = 3K9 U1 = LM7810, volt regulator R13 = 100K U2 = LM324, Op-amp R14 = 10 ohm/1 Watt Q1 = IRFP064N, IRFZ44, etc. MOSFet P1 = 20K (Frequency adjust) P2 = 10K (Duty Cycle) P3 = 1K (Current Limiting) *see text
UNDER CONSTRUCTION
