Hyper-Simple Battery Capacity Tester

The circuit described here is eminently suitable to indicate the capacity of a battery. We use a cheap electric clock for this. By connecting a resistor across the battery terminals, the battery is discharged somewhat faster than with the clock alone. If we pick a resistor with a value of 5.6R, the discharge current amounts to 1.2 V / 5.6 R = 214 mA. If we multiply this with the number of hours that the clock ran after the battery was connected up then we know (approximately) the capacity of the battery. When discharging a NiCd battery we need to make sure we remove the battery the moment the clock stops running. NiCd batteries do not tolerate too deep a discharge very well. We therefore recommend keeping an eye on the voltage in one way or another, for example by connecting a multimeter in parallel with the resistor.

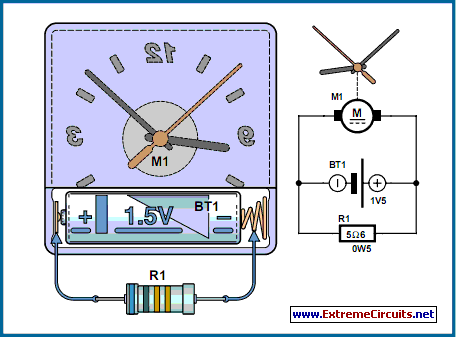

Circuit diagram:
Hyper-Simple Battery Capacity Tester circuit schematic
Hyper-Simple Battery Capacity Tester Circuit Diagram
Author: J. Van der Sterre
Copyright: Elektor Electronics
