Inexpensive Remote Watering SystemThis remotely controlled watering system is both inexpensive and easy to expand. It is designed to operate in conjunction with a conventional watering timer and allows remote switching between nine zones. The prototype is used in a bore system, where a deep-well pump must be started and kept running while zones are being changed. This is necessary to minimise cycling and results in maximum pump life. A standard portable telephone is used as the transmitter and receiver. The system’s range is therefore limited only by the telephone specifications. The prototype uses an Audioline model CDL1A, set to pulse-dial mode via a switch in the side. Selecting zones from the telephone keypad couldn’t be simpler.

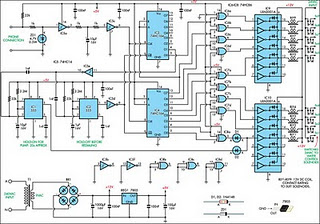

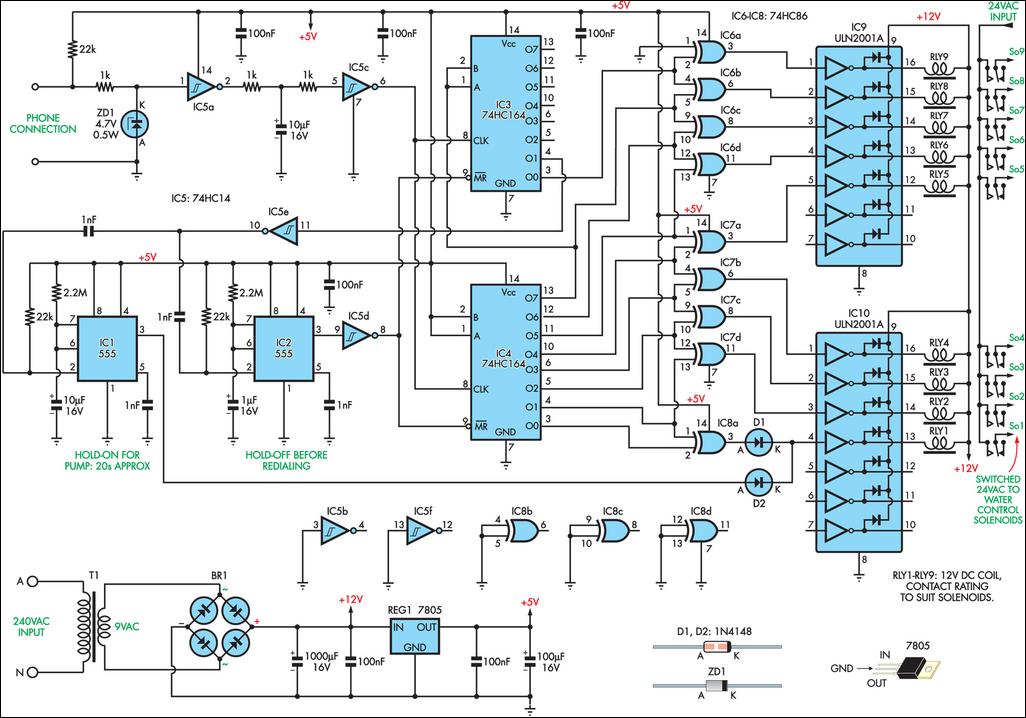

For the first nine zones, each key number (1-9) corresponds directly to a zone number. If additional zones were added to the basic circuit, "0" would represents zone 10, while further zones are "dialed-in" by simple addition. For example, to select station 15, you’d press "0" and then "5". Looking now at the circuit, the telephone base station is wired to one input of a hex Schmitt-trigger inverter (IC5a), which functions as a low-pass filter and pulse shaper in conjunction with two 1kO resistors, a 10µF capacitor and a second inverter (IC5c). Glitch-free pulses are fed to the clock inputs of two 74HC164 8-stage shift registers (IC3 & IC4).
The A & B inputs of IC4 are permanently pulled high, so the first pulse results in a logic high at output O0 (pin 3). Each additional pulse causes the next successive output to go high. After eight pulses, output O7 (pin 13) goes high and this is propagated to the second shift register (IC4) via its A & B inputs. The shift register outputs are wired to a collection of 74HC86 exclusive-OR gates (IC6-IC8) in such a way that only one of the 74HC86 outputs can be high at a time. For example, after three clock pulses, outputs O0-O3 of IC4 are high, which results in IC7c’s output going high.
The exclusive-OR gates feed a pair of ULN2001A Darlington drivers (IC9 & IC10), which in turn drive relays to switch power to the water solenoids. If a wrong key is pressed at the remote end and 10 pulses arrive at the shift register inputs, output O1 of IC3 will go high, triggering both 555 timers (IC1 & IC2) via inverter IC5e. The 555s are configured as monostables, so their outputs immediately swing high. IC2 resets the shift registers, returning all outputs to their initial (low) state. The reset signal is held for about three seconds, which ensures that any number of additional pulses (within reason) above the maximum of nine will be ignored. In the meantime, IC1 energises one of the water solenoids via diode D2 and the zone #1 driver circuit.
This solenoid is held on for about 20 seconds, giving sufficient time for the number to be redialled after the 3-second redial "hold-off" period. This solenoid "hold-on" period is important as it prevents overheating of the pump motor that might otherwise occur without continuous water flow. The circuit operates from +5V, which is generated by a conventional bridge rectifier (BR1), filter and regulator arrangement. 24VAC for the water solenoids is obtained from the water system timer transformer and is external to this circuit.
- For the "sorry, wrong number" feature to be effective, some form of operator feedback would be required if all of the sprinklers are not visible. Perhaps a siren could also be driven by IC1’s output to alert the operator that a valid sector number must be dialled within 20 seconds!
Author: Francis Egan
