LED Torch Uses Blocking Oscillator

This simple LED torch is driven by a 2-transistor blocking oscillator which steps up the voltage from a 1.5V cell. It relies on the inherent current limiting of the 150┬ÁH choke to protect the white LED from over-drive. With a 9V zener diode in place of the white LED, it could also provide a 9V supply provided the current drain is modest.

Circuit diagram:

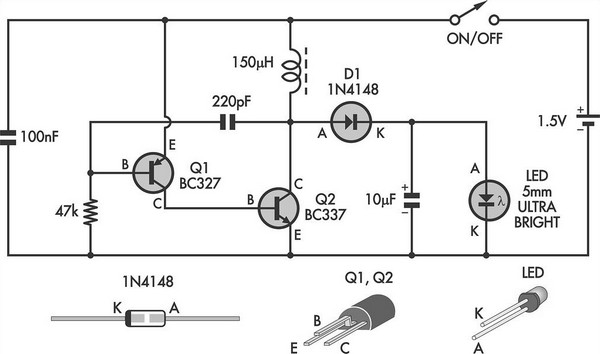

LED torch uses blocking oscillator circuit schematic
Author: Peter Goodwin
Copyright: Silicon Chip Electronics
