TV Relative Signal Strength Meter

This circuit was designed to assist the installation of TV antennas. The signal is monitored using a small portable TV set and this circuit monitors the output of the TV's FM detector IC via a shielded lead. To initially calibrate the meter, adjust trimpot VR2 to zero the meter. Trimpot VR1 is a sensitivity control and can be set for a preset reading (ie, 0dB) or can be calibrated in millivolts. Rotating the antenna for a minimum reading on the meter (indicating FM quieting) gives the optimum orientation for the antenna.

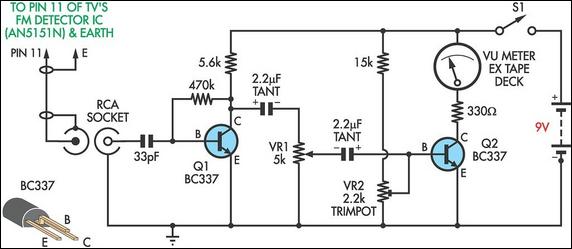

Circuit diagram:
TV relative signal strength meter circuit schematic
TV Relative Signal Strength Meter Circuit Diagram
Author: Ted Sherman
Copyright: Silicon Chip Electronics
