Amplifier circuits -- PENDING

We need your help! This page requires proofreading - If you notice any errors, please post on our forums

Note, Q3 and Q4 in Figure below are complementary, NPN and PNP respectively. This circuit works well for moderate power audio amplifiers. For an explanation of this circuit see “Direct coupled complementary-pair,” Ch 4 .

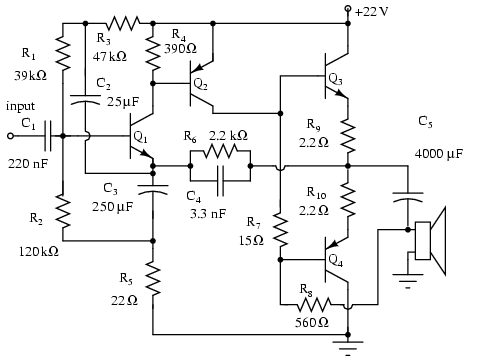

Direct coupled complementary symmetry 3 w audio amplifier. After Mullard. [MUL]
