Numeration systems
Question 1:
Digital computers communicate with external devices through
ports: sets of terminals usually arranged in groups of 4, 8, 16, or more (4 bits = 1
nybble, 8 bits = 1
byte, 16 bits = 2 bytes). These terminals may be set to high or low logic states by writing a program for the computer that sends a numerical value to the port. For example, here is an illustration of a microcontroller being instructed to send the hexadecimal number
F3 to port A and
2C to port B:
Suppose we wished to use the upper four bits of port A (pins 7, 6, 5, and 4) to drive the coils of a stepper motor in this eightstep sequence:

Step 1:

0001

Step 2:
 0011

Step 3:
 0010

Step 4:
 0110

Step 5:
 0100

Step 6:
 1100

Step 7:
 1000

Step 8:
 1001
As each pin goes high, it drives a power MOSFET on, which sends current through that respective coil of the stepper motor. By following a ßhift" sequence as shown, the motor will rotate a small amount for each cycle.
Write the necessary sequence of numbers to be sent to port A to generate this specific order of bit shifts, in hexadecimal. Leave the lower four bit of port A all in the low logic state.
Reveal Answer

Step 1:

10_{16}

Step 2:
 30_{16}

Step 3:
 20_{16}

Step 4:
 60_{16}

Step 5:
 40_{16}

Step 6:
 C0_{16}

Step 7:
 80_{16}

Step 8:
 90_{16}
Followup question: write the same sequence in decimal rather than hexadecimal:

Step 1:


Step 2:


Step 3:


Step 4:


Step 5:


Step 6:


Step 7:


Step 8:

Notes:
Although the root of this question is nothing more than binarytohexadecimal conversion, it also introduces students to the concept of controlling bit states in microcomputer ports by writing hex values. As such, this question is very practical!
In case students ask, let them know that a dollar sign prefix is sometimes used to denote a hexadecimal number. Other times, the prefix 0x is used (e.g., $F3 and 0xF3 mean the same thing).
Hide Answer
Question 2:
The numeration system we use in our daily lives is called
base ten, also called
decimal or
denary. What, exactly, does "base ten" mean?
Given the following baseten number, identify which digits occupy the öne's place," "ten's place," "hundred's place," and "thousand's place," respectively:
Reveal Answer
"Base ten" means that numbers are represented by combinations of symbols (ciphers), of which there are only ten (0, 1, 2, 3, 4, 5, 6, 7, 8, and 9).
Analyzing the number 5,183:

·

One's place: 3

·
 Ten's place: 8

·
 Hundred's place: 1

·
 Thousand's place: 5
Notes:
The "base" of our numeration system is something people usually don't think much about  it is simply taken for granted. The purpose of this question is to help students realize what numerical symbols actually mean, in preparation for understanding other systems of numeration.
Hide Answer
Question 3:
Observe the following sequence of numbers:
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
.
.
.
What pattern(s) do you notice in the digits, as we count upward from 0 to 21 (and beyond)? This may seem like a very simplistic question (and it is!), but it is important to recognize any inherent patterns so that you may understand counting sequences in numeration systems with bases other than ten.
Reveal Answer
Note the repeating sequence of digits in the one's place, and the developing pattern of incrementation in the ten's place. How many numbers may be counted without repeating digits in the one's place?
Notes:
Some students will think this question to be ridiculously simple, but there are some important lessons to be learned here. The greatest problem students face while learning binary, octal, and hexadecimal numeration systems is the overpowering familiarity with baseten numeration. We are so accustomed to baseten that we don't bother to recognize its basic properties, and typically believe that this is the only way numbers may be written!
Hide Answer
Question 4:
The ancient Mayans used a
vigesimal, or basetwenty, numeration system in their mathematics. Each "digit" was a actually a composite of dots and/or lines, as such:

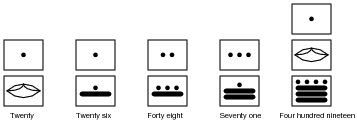

To represent numbers larger than twenty, the Mayans combined multiple "digits" the same way we do to represent numbers larger than ten. For example:
Based on the examples shown above, determine the placeweighting of each "digit" in the vigesimal numeration system. For example, in our denary, or baseten, system, we have a one's place, a ten's place, a hundred's place, and so on, each successive "place" having ten times the "weight" of the place before it. What are the values of the respective "places" in the Mayan system?

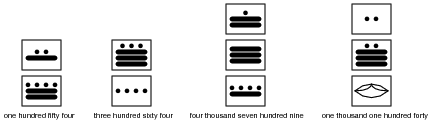

Also, determine the values of these Mayan numbers:
Reveal Answer
Place weights: one's, twenty's, four hundred's, eight thousand's, . . .
Notes:
Although no one counts in "Mayan" anymore, this question is still relevant because it gets students thinking outside their accustomed numeration system. Also, it has some cultural value, showing them that not everyone in the world counts the same way they do!
Hide Answer
Question 5:
Digital computers use a numeration system with a base of
two, rather than a base of
ten as we are accustomed to using. It is much easier to engineer circuitry that counts in "binary" than it is to design circuits that count in any other base system. Based on what you know of numeration systems, answer the following questions:

·

How many different symbols (ciphers) are there in the binary numeration system?

·
 What are the different placeweight values in the binary system?

·
 How would you represent the number ßeventeen" in binary?

·
 In our baseten (denary) numeration system, each character is called a "digit." What is each character called in the binary numeration system?
Reveal Answer
There are only two valid ciphers in the binary system: 0 and 1. Each successive place carries twice the "weight" of the one before it. Seventeen = 10001 (in binary). Each character in the binary system is called a "bit" rather than a "digit".
Notes:
Ask your students to hypothesize why binary is used in digital circuitry rather than baseten (denary) numeration. I've revealed that it's easier to build circuits representing quantities in binary than any other numerical base, but why?
Hide Answer
Question 6:
If a digital meter display has four digits, it can represent any number from 0000 to 9999. This constitutes ten thousand unique numbers representable by the display. How many unique numbers could be represented by five digits? By six digits?
If an ancient Mayan ledger had spaces for writing numbers with three "digits" each, how many unique numbers could be represented in each space? What if the spaces were expanded to hold four "digits" each?
If a digital circuit has four
bits, how many unique binary numbers can it represent? If we expanded its capabilities to eight bits, how many unique numbers could be represented by the circuit?
After answering these questions, do you see any mathematical pattern relating the number of "places" in a numeration system and the number of unique quantities that may be represented, given the "base" value ("radix") of the numeration system? Write a mathematical expression that solves for the number of unique quantities representable, given the "base" of the system and the number of "places".
Reveal Answer
Five denary digits: one hundred thousand unique numbers. Six denary digits: one million unique numbers.
Three vigesimal "digits": eight thousand unique numbers. Four vigesimal "digits": one hundred sixty thousand unique numbers.
Four binary bits: sixteen unique numbers. Eight binary bits: two hundred fifty six unique numbers.
Where,
b = Radix of numeration system.
n = Number of "places" given.
Notes:
Ask your students which numeration system of the three given is more efficient in representing quantities with the smallest number of places. Then, ask them to explain why this is.
Hide Answer
Question 7:
What is the largest number that can be counted to, in a baseten system with six digits? How about in a basetwenty (vigesimal) system with four places? How about in a basetwo (binary) system with ten bits?
Reveal Answer
999999
_{10} = Nine hundred ninety nine thousand, nine hundred ninety nine.
1111111111
_{2} = one thousand twenty three.
Notes:
Ask your students to explain why subscripts are desirable when writing numbers in binary, or in any other "base" numeration system for that matter.
Hide Answer
Question 8:
How many binary bits are needed to count up to the number one million three hundred thousand seven hundred sixty two? Try to answer this question without converting this quantity into binary form, and then explain the mathematical procedure!
Reveal Answer
Twenty one bits.
Hint: the answer consists in solving this equation:
Where,
n = The number of binary bits necessary to count up to 1,300,762.
Notes:
This question is a test of whether or not students know how to algebraically solve for variable exponents. I'm not going to suggest how this is done (lest I rob a student of the learning experience that comes from researching the answer on their own), but I will say that it is a very useful algebraic technique, once mastered.
If students still haven't found a solution after doing their research, suggest they try to solve a simpler problem:
 How many decimal digits are needed to count up to the number one million three hundred thousand seven hundred sixty two?
This question is trivial to answer (7 decimal digits), since we're all familiar with decimal numeration. However, the real learning takes place when students write a mathematical expression for solving this problem, similar to the one written in the answer for the binary problem. Once they have that expression written, ask them what algebraic techniques could be used to solve for the exponent's value.
Hide Answer
Question 9:

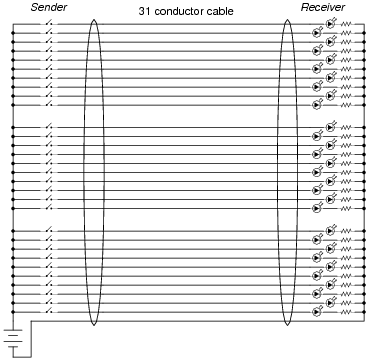

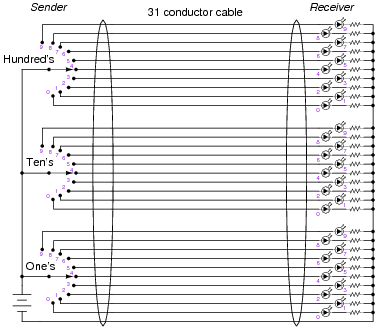

The circuit shown in this diagram is used to transmit a numerical value from one location to another, by means of switches and lights:
Given the switches and lights shown, any whole number between 0 and 999 may be transmitted from the switch location to the light location.
In fact, the arrangement shown here is not too different from an obsolete design of electronic baseten indicators known as
Nixie tube displays, where each digit was represented by a neonfilled glass tube in which one of ten distinct electrodes (each in the shape of a digit, 09) could be energized, providing glowing numerals for a person to view.
However, the system shown in the above diagram is somewhat wasteful of wiring. If we were to use the same thirtyone conductor cable, we could represent a much broader range of numbers if each conductor represented a distinct binary bit, and we used binary rather than baseten for the numeration system:
How many unique numbers are representable in this simple communications system? Also, what is the greatest individual number which may be sent from the "Sender" location to the "Receiver" location?
Reveal Answer
In this system, with a "width" of 30 bits, we are able to represent one billion, seventy three million, seven hundred forty one thousand, eight hundred twenty four unique numbers. The greatest individual number which may be communicated is one less than this total.
Notes:
The purpose of this question is to allow students to consider an electric circuit that communicates digital quantities from one location to another, rather than abstractly discuss numeration systems. It also provides a more practical context in which to understand maximum count in a numeration system.
Hide Answer
Question 10:
Explain why binary is a natural numeration system for expressing numbers in electronic circuits. Why not decimal or some other base of numeration?
How do you suspect binary numbers may be
stored in electronic systems, for future retrieval? What advantages are there to the use of binary numeration in storage systems?
Reveal Answer
The two states of an on/off circuit are equivalent to 0 and 1 ciphers in binary. Any medium in which on/off states may be physically represented is applicable to storing binary numbers. Optical disks (CDROM, DVD) are an excellent example of this, with laserburned "pits" representing binary bits.
Notes:
Ask your students to think of different media or physical quantities which may represent binary information, especially those related to electric/electronic circuits.
Hide Answer
Question 11:
Convert the following numbers from binary (basetwo) to decimal (baseten):

·

10_{2} =

·
 1010_{2} =

·
 10011_{2} =

·
 11100_{2} =

·
 10111_{2} =

·
 101011_{2} =

·
 11100110_{2} =

·
 10001101011_{2} =
Describe a general, stepbystep procedure for converting binary numbers into decimal numbers.
Reveal Answer

·

10_{2} = 2_{10}

·
 1010_{2} = 10_{10}

·
 10011_{2} = 19_{10}

·
 11100_{2} = 28_{10}

·
 10111_{2} = 23_{10}

·
 101011_{2} = 43_{10}

·
 11100110_{2} = 230_{10}

·
 10001101011_{2} = 1131_{10}
Notes:
The most important part of this question, of course, is the method of translating binary into decimal. Don't tell your students how to do this, as there are plenty of good references to be found on the procedure. If a student cannot research and understand how to convert binary into decimal without your help, they aren't trying hard enough!
Hide Answer
Question 12:
Convert the following numbers from decimal (baseten) to binary (basetwo):

·

7_{10} =

·
 10_{10} =

·
 19_{10} =

·
 250_{10} =

·
 511_{10} =

·
 824_{10} =

·
 1044_{10} =

·
 9241_{10} =
Describe a general, stepbystep procedure for converting decimal numbers into binary numbers.
Reveal Answer

·

7_{10} = 111_{2}

·
 10_{10} = 1010_{2}

·
 19_{10} = 10011_{2}

·
 250_{10} = 11111010_{2}

·
 511_{10} = 111111111_{2}

·
 824_{10} = 1100111000_{2}

·
 1044_{10} = 10000010100_{2}

·
 9241_{10} = 10010000011001_{2}
Notes:
The most important part of this question, of course, is the method of translating decimal into binary. Don't tell your students how to do this, as there are plenty of good references to be found on the procedure. If a student cannot research and understand how to convert decimal into binary without your help, they aren't trying hard enough!
Hide Answer
Question 13:
A numeration system often used as a ßhorthand" way of writing large binary numbers is the
octal, or baseeight, system.
Based on what you know of placeweighted numeration systems, describe how many valid ciphers exist in the octal system, and the respective "weights" of each place in an octal number.
Also, perform the following conversions:

·

35_{8} into decimal:

·
 16_{10} into octal:

·
 110010_{2} into octal:

·
 51_{8} into binary:
Reveal Answer
There are only eight valid ciphers in the octal system (0, 1, 2, 3, 4, 5, 6, and 7), with each successive place carrying eight times the "weight" of the place before it.

·

35_{8} into decimal: 29_{10}

·
 16_{10} into octal: 20_{8}

·
 110010_{2} into octal: 62_{8}

·
 51_{8} into binary: 101001_{2}
Followup question: why is octal considered a ßhorthand" notation for binary numbers?
Notes:
There are many references from which students may learn to perform these conversions. You assistance should be minimal, as these procedures are simple to comprehend and easy to find.
Hide Answer
Question 14:
A numeration system often used as a ßhorthand" way of writing large binary numbers is the
hexadecimal, or basesixteen, system.
Based on what you know of placeweighted numeration systems, describe how many valid ciphers exist in the hexadecimal system, and the respective "weights" of each place in a hexadecimal number.
Also, perform the following conversions:

·

35_{16} into decimal:

·
 34_{10} into hexadecimal:

·
 11100010_{2} into hexadecimal:

·
 93_{16} into binary:
Reveal Answer
There are sixteen valid ciphers in the hexadecimal system (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F), with each successive place carrying sixteen times the "weight" of the place before it.

·

35_{16} into decimal: 53_{10}

·
 34_{10} into hexadecimal: 22_{16}

·
 11100010_{2} into hexadecimal: E2_{16}

·
 93_{16} into binary: 10010011_{2}
Followup question: why is hexadecimal considered a ßhorthand" notation for binary numbers?
Notes:
There are many references from which students may learn to perform these conversions. You assistance should be minimal, as these procedures are simple to comprehend and easy to find.
Hide Answer
Question 15:

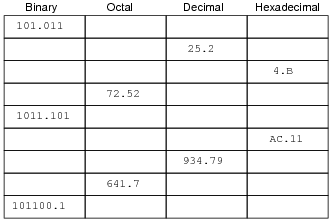

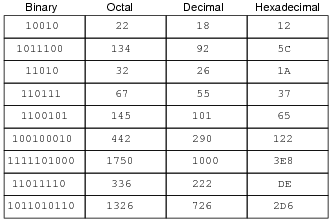

Complete this table, performing all necessary conversions between numeration systems:
Reveal Answer
Notes:
Lots of conversions to do here! I particularly like the "table" format shown here for practicing numeration system conversions, because it compresses a lot of practice into a small space on paper, and also because it allows students to use different methods of conversion. For example, in converting a decimal number to the other forms, a student might choose to convert first to binary, then from binary to octal and hex. Or, alternatively, a student may choose to convert from decimal into hex, then from hex into binary, then from binary to octal, the last two conversions being especially easy.
Hide Answer
Question 16:
When representing nonwhole numbers, we extend the "places" of our decimal numeration system past the right of the decimal point, like this:
How do you suppose we represent nonwhole numbers in a numeration system with a base (or "radix") other than ten? In the following examples, write the placeweight values underneath each place, and then determine the decimal equivalent of each example number:
Reveal Answer
Notes:
Many students will not realize initially that it is possible to represent nonwhole numbers in binary, octal, or hexadecimal. Really, though, the concept is identical to the representation of nonwhole numbers in decimal form. The ability of your students to grasp nonwhole numbers in these other numeration systems indicates their grasp of placeweighted systems in general. If a student truly comprehends how placeweighting works, they will have no trouble understanding digits to the left or the right of the radix point in any numeration system. If a student does not understand how digits to the right of the decimal point are interpreted in other numeration systems, then they need to spend more time reviewing what decimal numbers mean.
It's not that the concept is so hard to understand, so much as it is our familiarity with the decimal (baseten) numeration system. We grow so accustomed to one way of representing numbers that we don't realize what the symbols actually mean, or that there may be alternative methods of representing quantities.
Hide Answer
Question 17:
Convert the following numbers (all between the values of 0 and 1) into decimal form:

·

0.001_{2} =

·
 0.101_{2} =

·
 0.10111_{2} =

·
 0.005_{8} =

·
 0.347_{8} =

·
 0.34071_{8} =

·
 0.00C_{16} =

·
 0.A2F_{16} =

·
 0.A2F09_{16} =
Reveal Answer

·

0.001_{2} = 0.125_{10}

·
 0.101_{2} = 0.625_{10}

·
 0.10111_{2} = 0.71875_{10}

·
 0.005_{8} = 0.009765625_{10}

·
 0.347_{8} = 0.451171875_{10}

·
 0.34071_{8} = 0.439239502_{10}

·
 0.00C_{16} = 0.002929688_{10}

·
 0.A2F_{16} = 0.636474609_{10}

·
 0.A2F09_{16} = 0.636483192_{10}
Notes:
Ask your students to explain the method of conversion used in each case. It is rather simple, but important to understand nonetheless. Ask your students how this method compares with the conversion of wholenumber values into decimal form.
Hide Answer
Question 18:

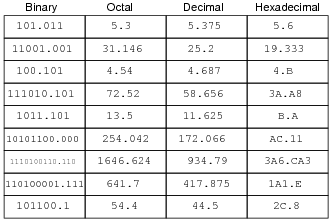

Complete this table, performing all necessary conversions between numeration systems. Truncate all answers to three characters past the point:
Reveal Answer
Notes:
Lots of conversions to do here! I particularly like the "table" format shown here for practicing numeration system conversions, because it compresses a lot of practice into a small space on paper, and also because it allows students to use different methods of conversion. For example, in converting a decimal number to the other forms, a student might choose to convert first to binary, then from binary to octal and hex. Or, alternatively, a student may choose to convert from decimal into hex, then from hex into binary, then from binary to octal, the last two conversions being especially easy.
Hide Answer
Question 19:
In digital computer systems, binary numbers are often represented by a fixed number of bits, such as 8, or 16, or 32. Such bit groupings are often given special names, because they are so common in digital systems:

·

byte

·
 nybble

·
 word
How many binary bits is represented by each of the above terms?
And, for those looking for more challenge, try defining these terms:

·

nickle

·
 deckle

·
 chawmp

·
 playte

·
 dynner
Reveal Answer

·

byte = 8 bits

·
 nybble = 4 bits

·
 word = depends on the system
The term "word," is often used to represent 16 bits, but it really depends on the particular system being spoken of. A binary "word" is more accurately defined as the default width of a binary bit grouping in a digital system.
Followup question: what binary grouping corresponds to a single hexadecimal character?
Notes:
Definitions taken from The New Hacker's Dictionary, available on internet terminals everywhere.
Hide Answer
