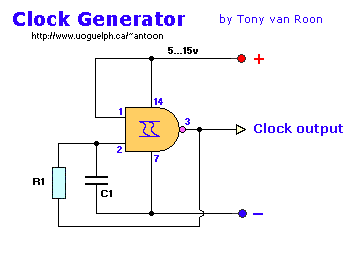

o - Excellent clock generator to drive 4017 type cmos circuits.
o - R1 = 10K to 10M, C1 = 100pF to 47uF.
o - Fo is ±1Kz when R1=100K and C1=10nF.
o - Input voltage can be from 5 to 15V.
Please note: I will answer no email in regards to this
circuit.
