Additional Notes

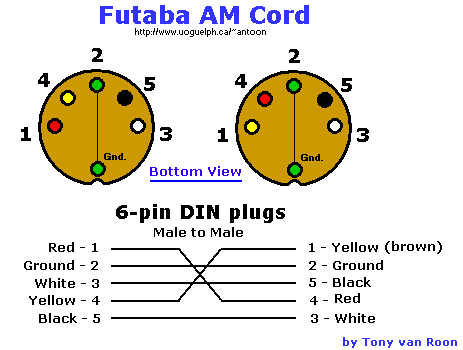

1 - Pin 1 and Pin 4 (red & yellow wires) are crossed. D.I.N. is a european 'norm' originating from Germany. The D.I.N. abbreviation stands for "Deutshe Industrie Norm" and means translated "German Industry Standard".

2 - Each of the 5 wires have an individual (stranded) shield.

3 - Pin 2 (ground) can be any color, but is usually brown or black.

---
