Modular Preamplifier Switching Center

Four high level inputs, Double Bar switching

This module can be a necessary addition to the Modular Preamplifier Control Center when more than two sources need to be connected to the preamplifier chain. Four high level inputs can be selected by means of SW1 and routed to the output. The output of this module must be connected by a suitable cable to one of the two inputs of the Control Center module. In this way, a total of five inputs will be available to the user of this module combination.

The Switching Control features also the so called "Double Bar", i.e. the possibility of routing to an external unit, e.g. a recorder (tape or digital) an input signal different from that reproduced at the time by the amplifier. For example, you can listen in to a CD whereas the signal coming from a radio station through the Tuner is routed to the recorder. This selection is operated by means of SW2.

As with the other modules of this series, each electronic board can be fitted into a standard enclosure: Hammond extruded aluminum cases are well suited to host the boards of this preamp. In particular, the cases sized 16 x 10.3 x 5.3 cm or 22 x 10.3 x 5.3 cm have a very good look when stacked. See below an example of the possible arrangement of the front and rear panels of this module.

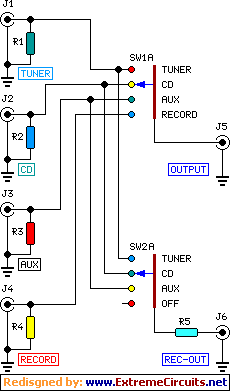

Circuit diagram:
modular preamplifier switching center schematic
Modular Preamp Switching Center Circuit Diagram
Parts:

R1,R2,R3,R4____100K 1/4W Resistors
R5_____________560R 1/4W Resistor
SW1,SW2________2 poles 4 ways Rotary Switches
J1 to J6_______RCA audio input sockets

Notes:
  1. No power supply is necessary for this module
  2. The circuit diagram shows the Left channel only, so all the parts must be doubled except SW1 and SW2 which are double pole switches, i.e. ready for stereo.
A possible arrangement of the front and rear panels of this Module

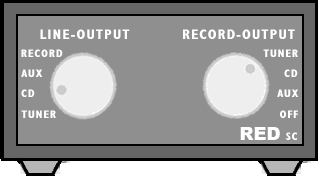

Switching Center Front Panel

modular preamplifier switching center front panel

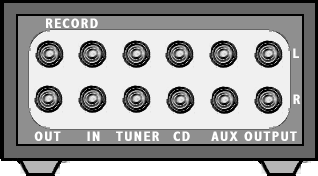

Switching Center Rear Panel

modular preamplifier switching center rear panel
