Data Sheet for various components

Data Sheet for various components by Tony van Roon

To enlarge any of the diagrams, just click on it...

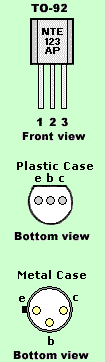

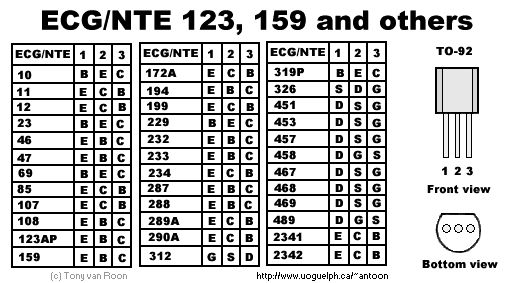

NTE123AP

NTE123AP

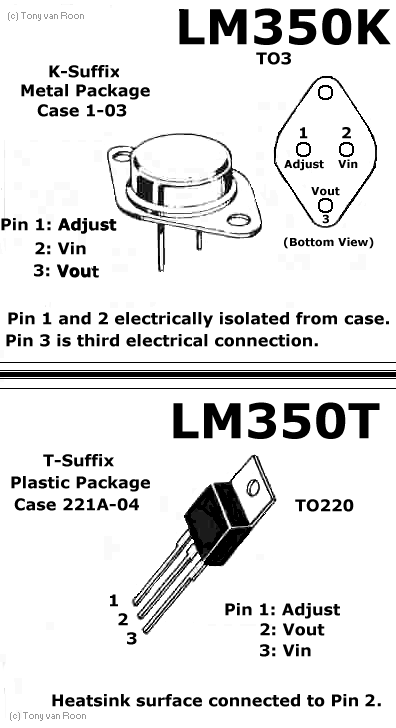

LM350

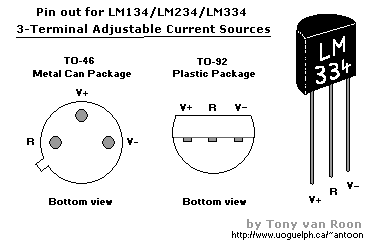

LM334

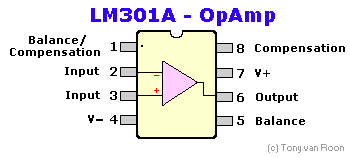

LM301A

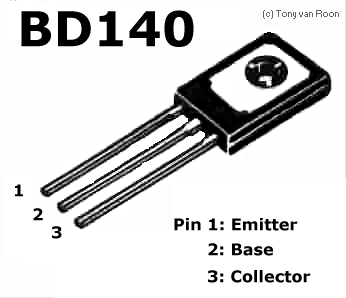

BD140

BC547

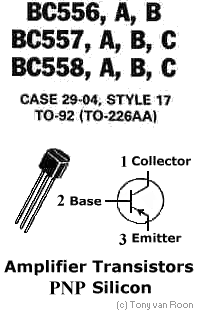

BC557

TL431ILP

MPF102/NTE451

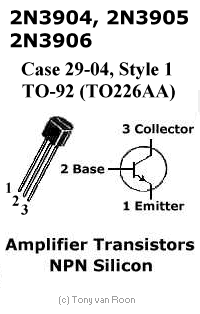

2N3904

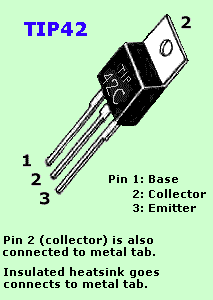

TIP42

SN7400

SN7473

IRL2203N outline
