Mains Operated LED Circuit Schematic

Small in size! Big in use



Here is a simple and powerful LED circuit that can be operated directly from the AC 100 volt to AC 230 Volts mains supply. The circuit can be used as mains power locator or night lamp etc.. The resistor R1,R2 and capacitor C1 provides necessary current limiting. The circuit is sufficiently immune against voltage spikes and surges.



Circuit's pictures:

 220_Volt_AC_Powered_LED_Circuit_Diagram_Schematic_Circuit_Diagram

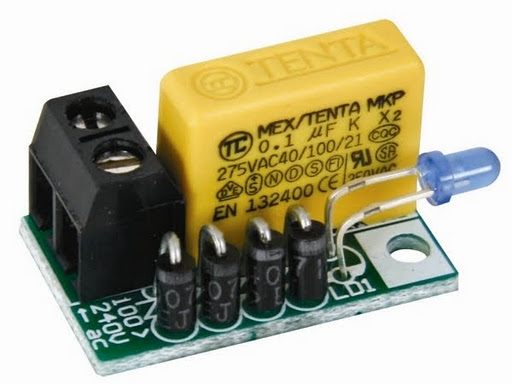

Front View of 220 Volt AC Operated LED Circuit



Circuit diagram:

 220_Volt_AC_Powered_LED_Circuit_Diagram_Schematic_Circuit_Diagram

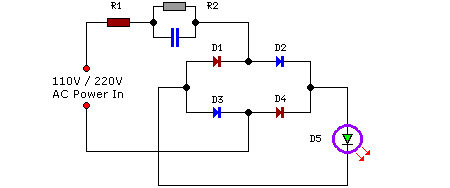

Mains Operated LED Circuit Diagram



Parts:

D1 = 1N4007
D2 = 1N4007
D3 = 1N4007
D4 = 1N4007
R2 = 1M-1/2W
R1 = 470R-1/2W
C1 = 220nF-275vAC
D5 = 5mm. Blue LED



Features:
  1. Small in size!
  2. Blue LED operated on mains voltage
  3. Suited for mains indicator or other pilot lamps
  4. For safety guidance, stairs, corridors…
  5. Special X2 safety capacitor
  6. 100Vac to 240Vac 50Hz or 60Hz Operated
  7. Dimensions: 28x18mm / 1.10 x 0.71"

Note:

Safety and Hazard WARNINGS:

This circuit operates on a lethal power voltage. Mount the circuit in a protective cabinet prio to applying AC Power. Do not modify the circuit - Wait 10 minutes before touching the circuit after disconnecting the AC Power. This circuit is not intended for children.
